Replacing the chain on EVIE S1 and T1

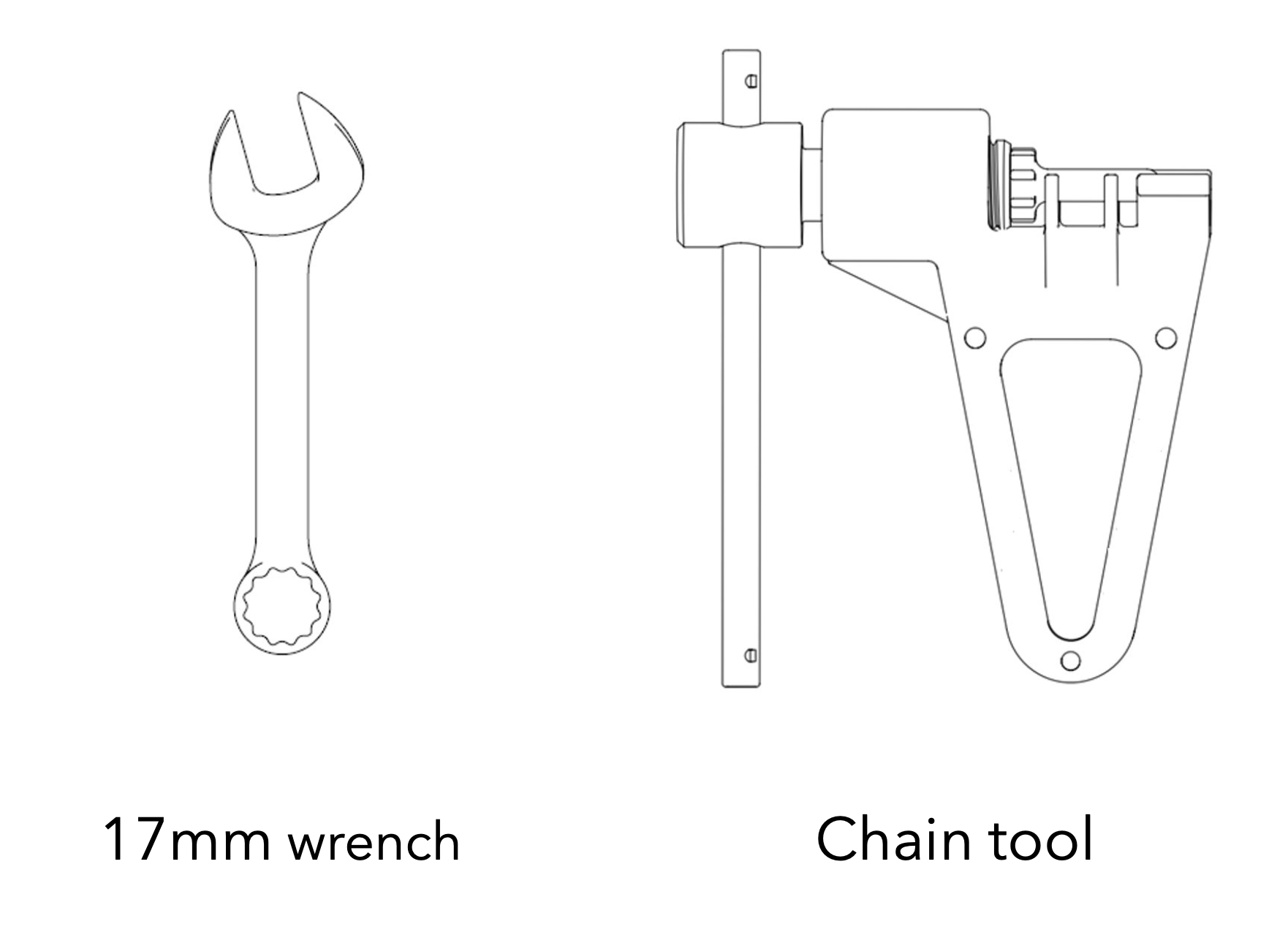

Tools

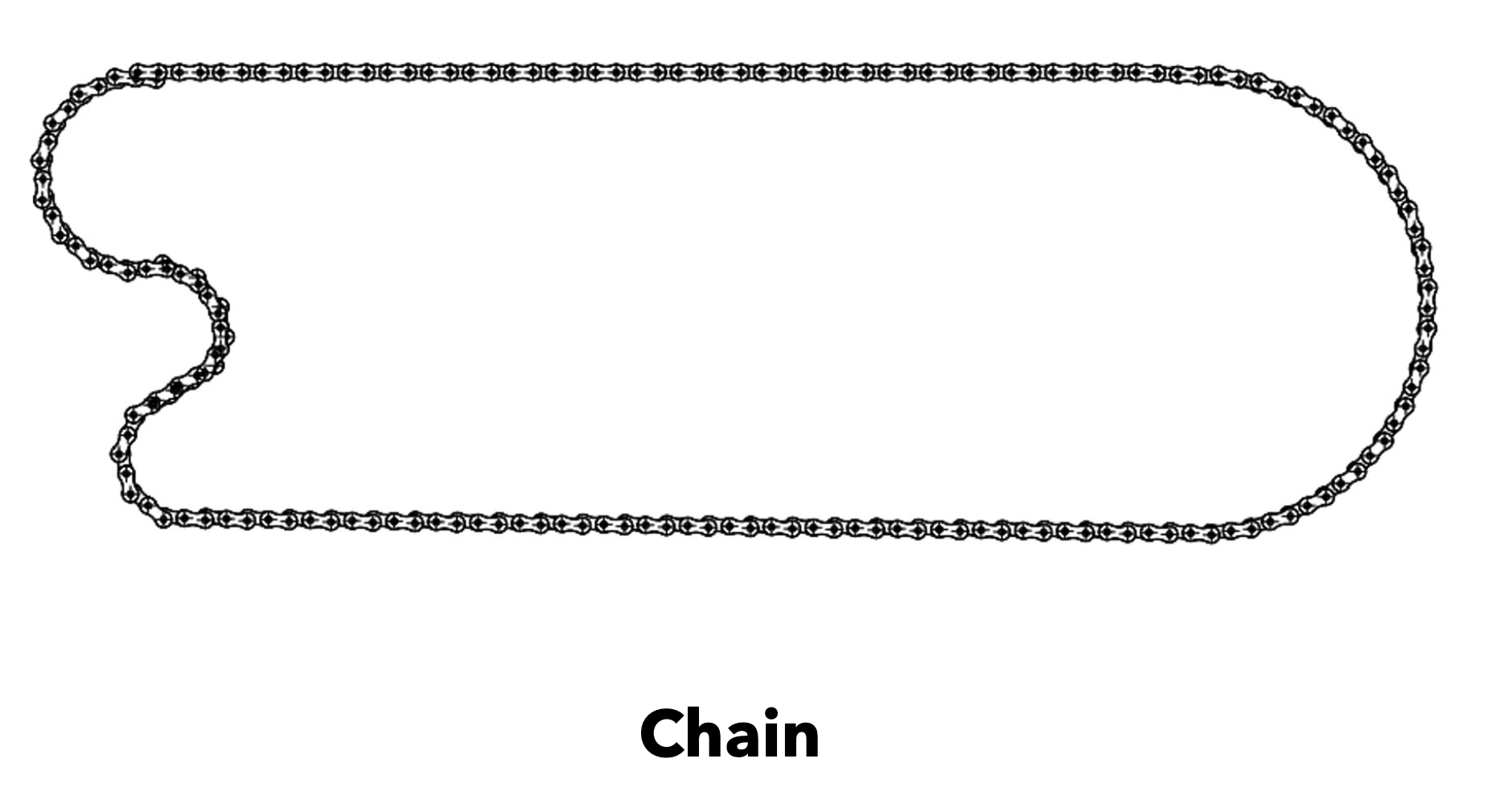

Components

Step 1

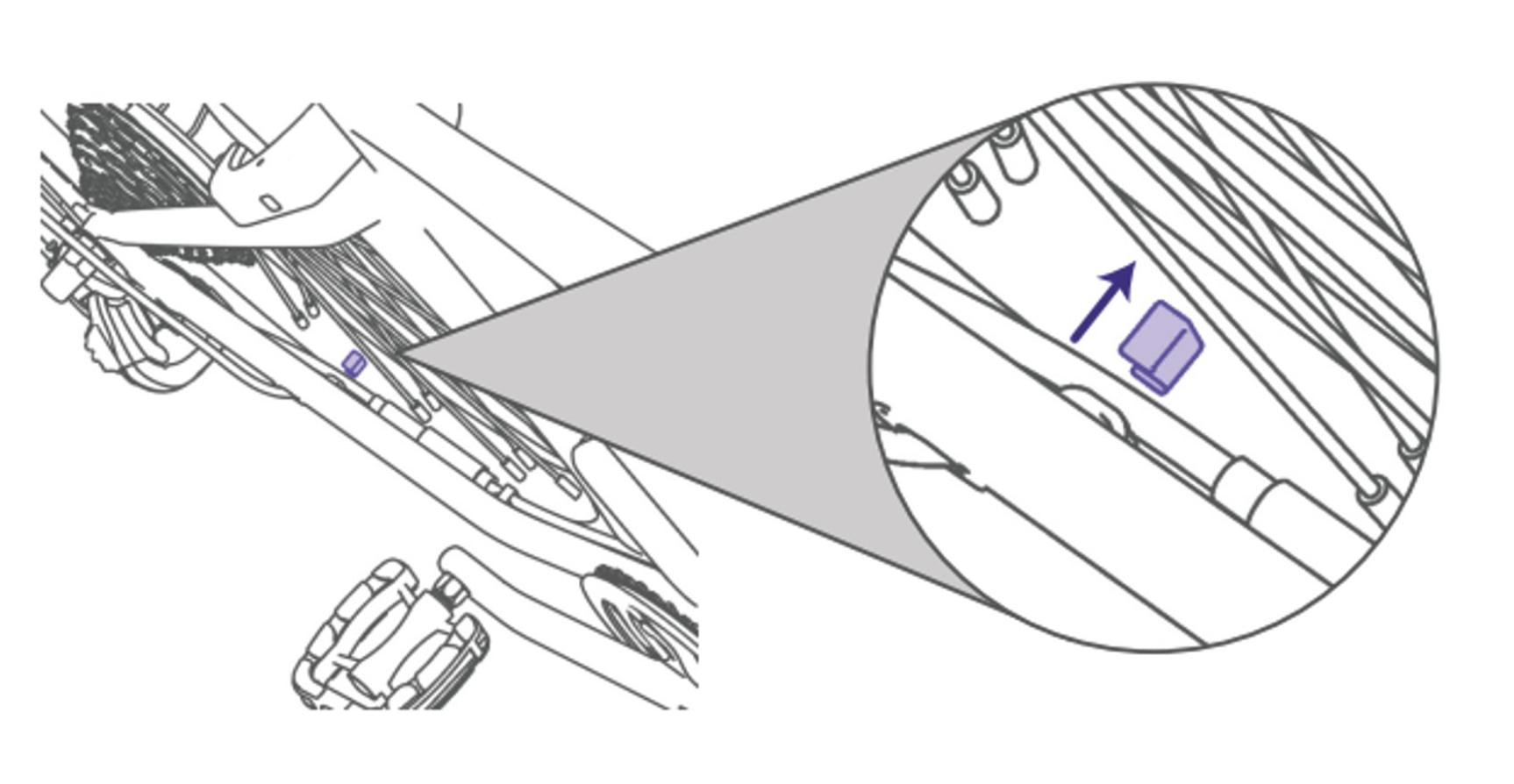

Remove the cable tie clip on the bike frame. Make sure to store it safely for later use​.

Step 2

Unplug the connector of the motor on the chain stay. ​

Step 3

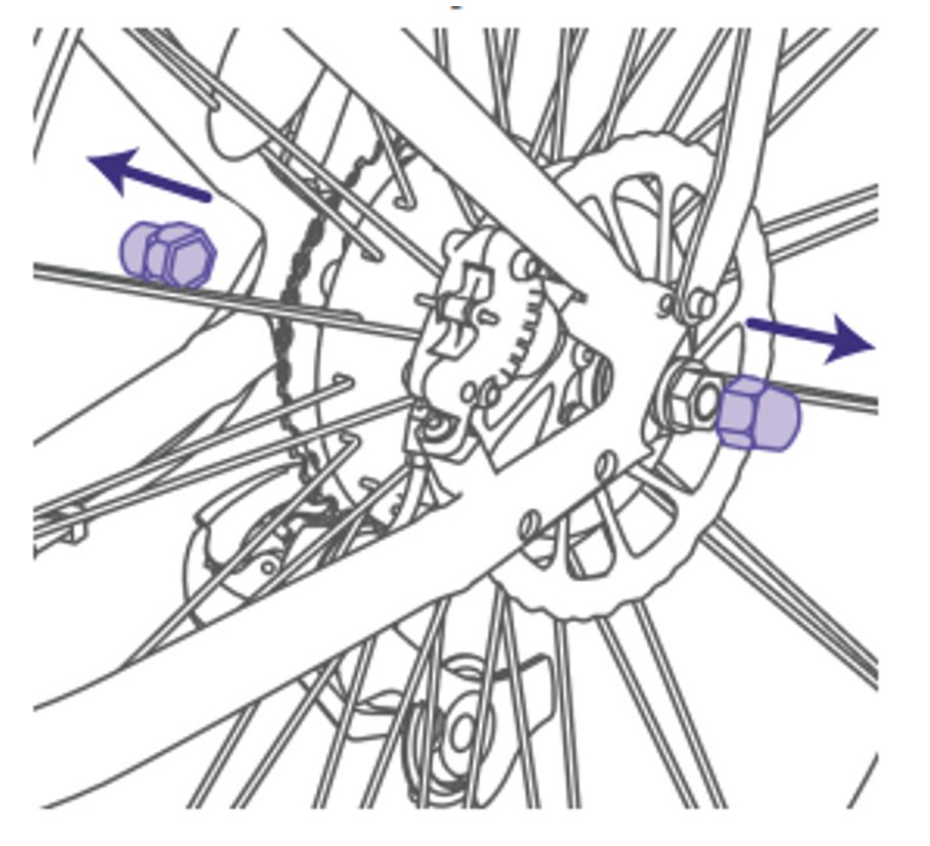

Remove the rubber caps on both sides of the rear wheel. Make sure to store them safely for later use​.

Step 4

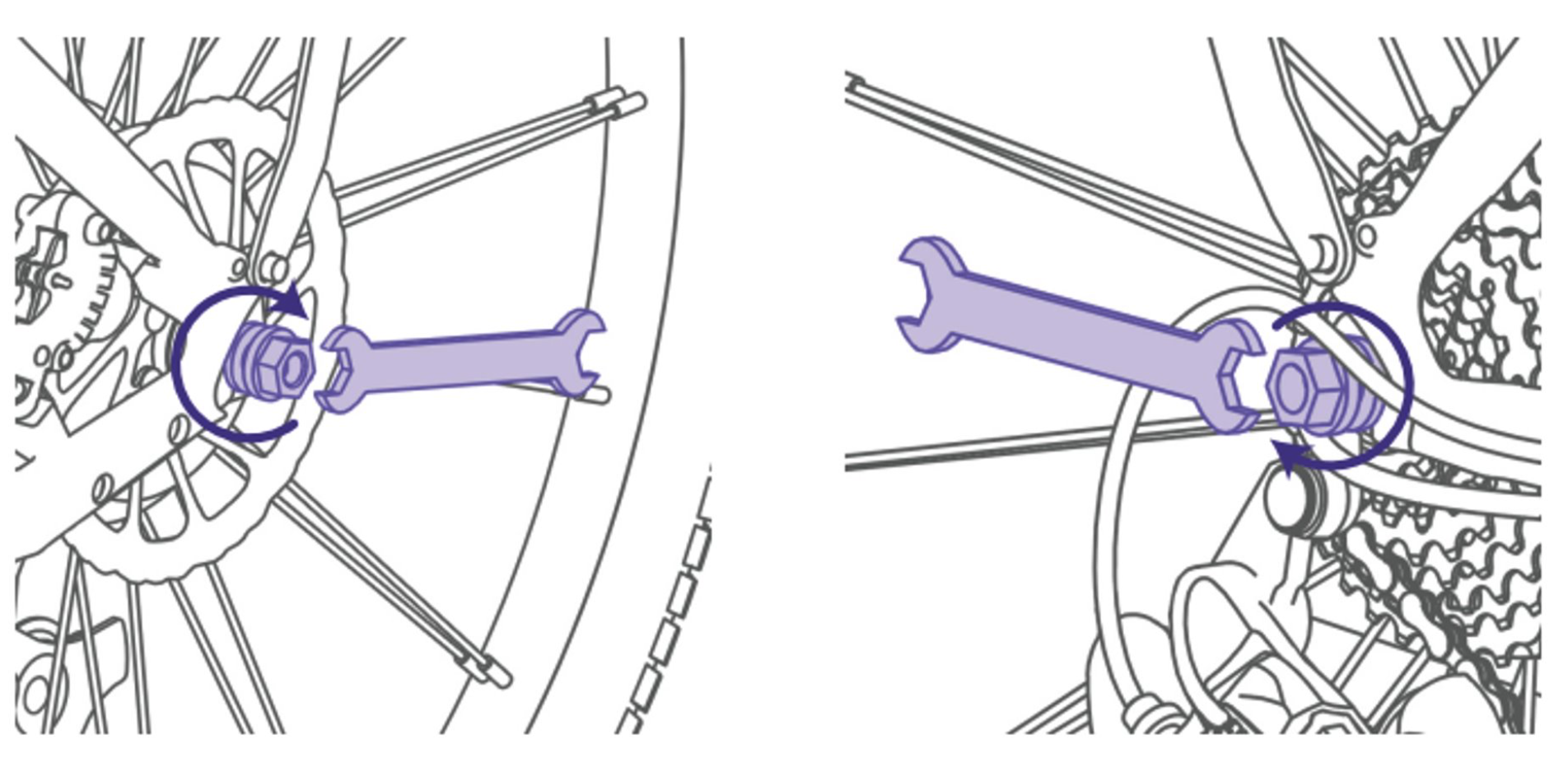

Loosen the nuts on both sides of the rear wheel using 15mm wrench. You do not need to remove the nuts completely​

Step 5

Remove the rear wheel by detaching it from the frame​

Step 6

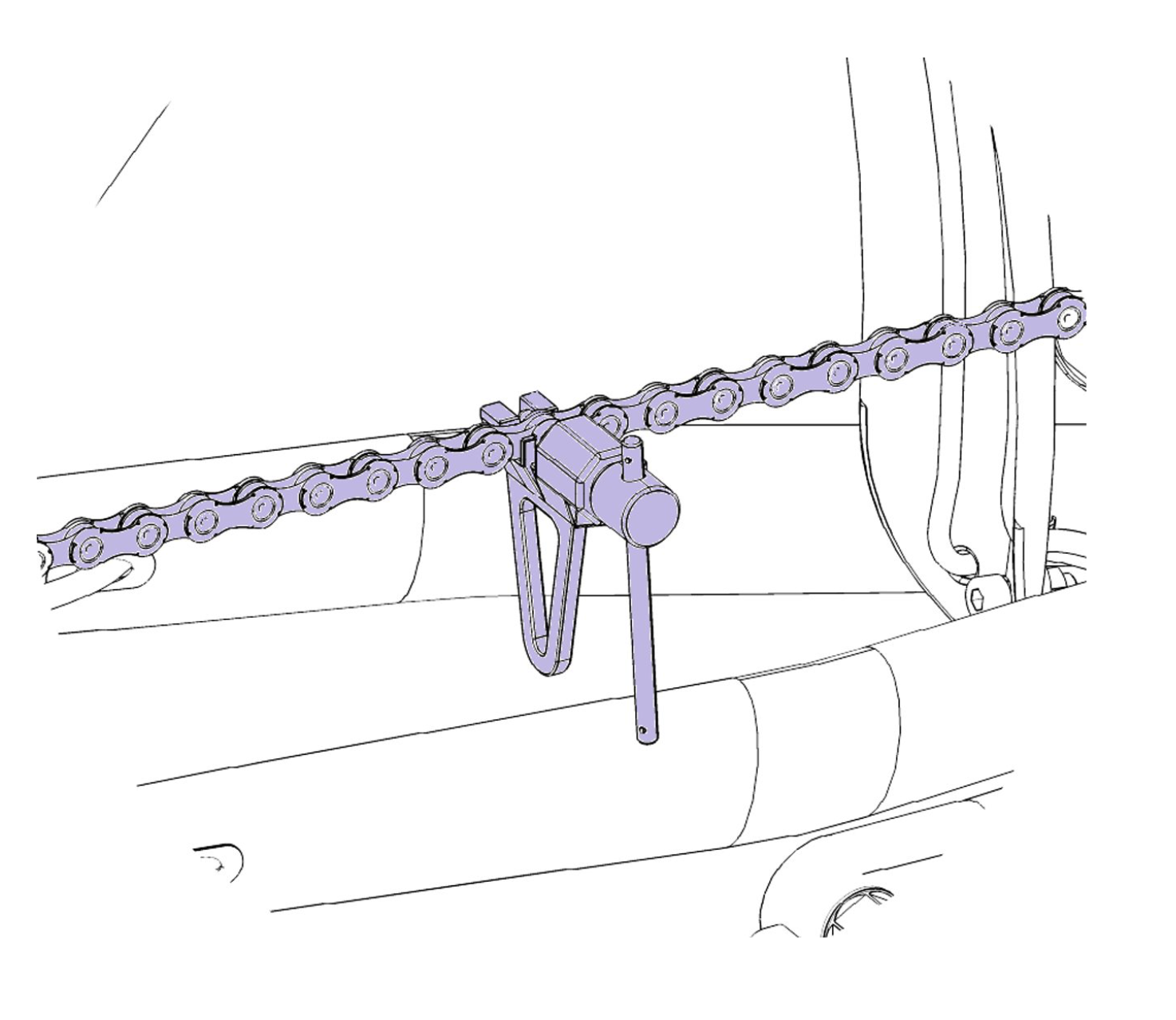

Use the chain tool to push the rivet out of the chain to break the chain so that it can be removed​

Step 7

Install the new chain on the front and rear cog​

Step 8

Connect the new chain together by inserting the rivet pin into the chain by using the chain tool​

Step 9

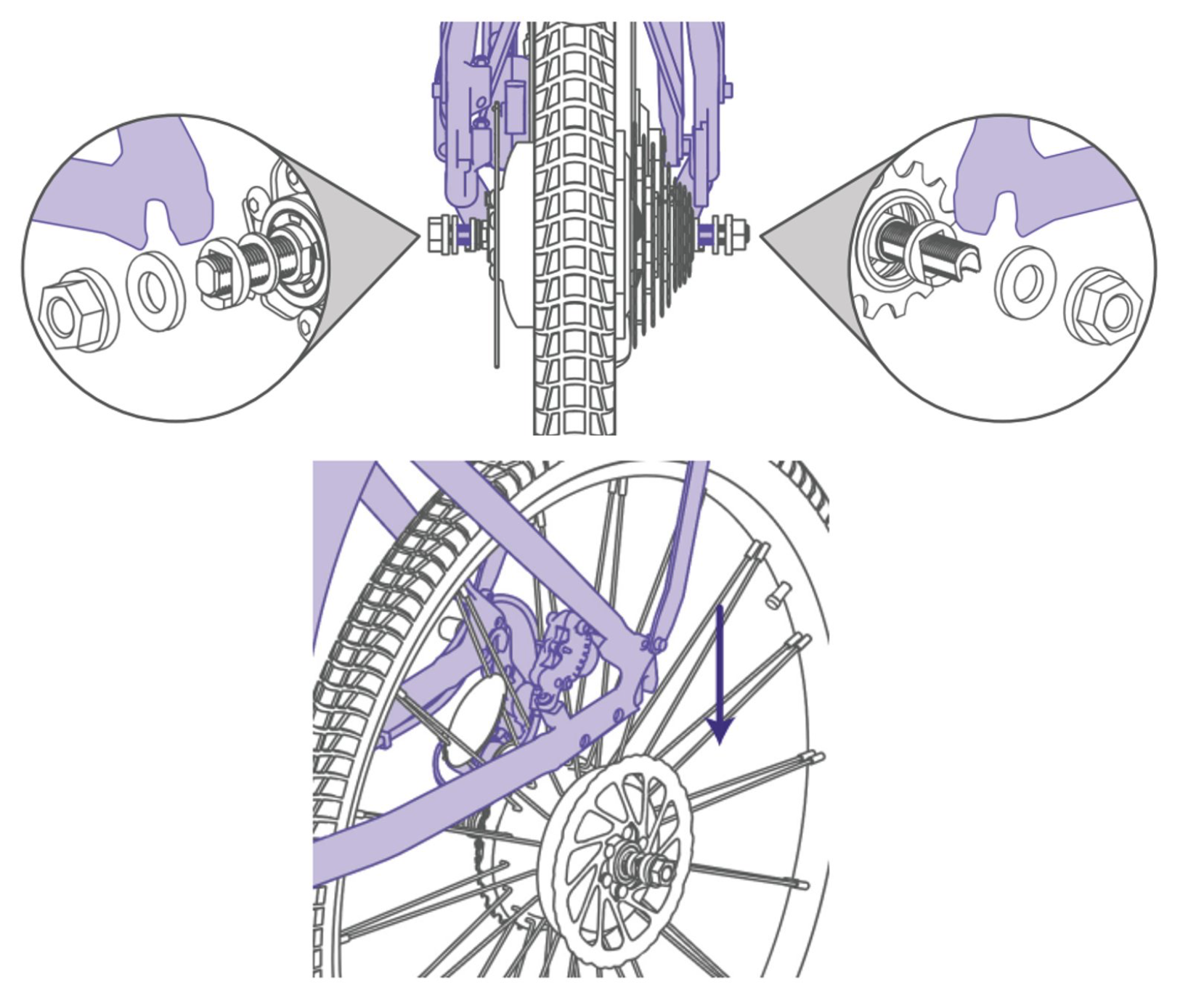

Re-attach the rear wheel. If the nut was removed, carefully assemble it back in the order show​

Step 10

Tighten the nuts on both sides of the rear wheel​

Step 11

Attach the stored rubber caps back on both sides of the rear wheel​

Step 12

Carefully re-connect the cable. Use the arrow markings on the cable to align the connectors. ​

Step 13

Clip in the cable tie of the hub motor wire that is located along the chain stay.​
